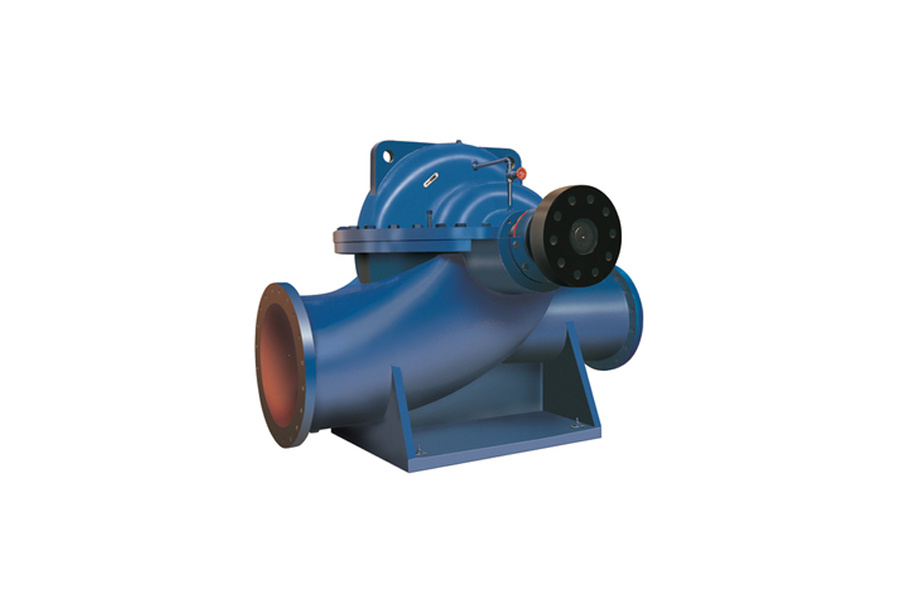

SAP type pump single-stage double-suction horizontal split centrifugal pump
Key words:
category:
Pump Description
Overview
SAP type pump is a single-stage, double-suction horizontal split centrifugal pump, suitable for factories, cities, mines, power stations, farmland, water conservancy projects and other fields. It is used to transport clear water without solid particles or other liquids with physical and chemical properties similar to water, and the temperature of the medium to be transported is 0°C to 80°C. The maximum allowable inlet pressure is 0.6Mpa.
Parameter range:
Flow Q: 72～20000m3/h Head H: 6.8～186m
Model Description:
Such as: 10SAP-6JA
10——The suction diameter is divided by 25 (that is, the suction diameter is 250mm)
SAP - single-stage double-suction horizontal split centrifugal pump
6 - the divisor of the number of revolutions divided by 10
J——represents the change of rated speed
A——represents the first change of the outer diameter of the impeller, A, B, C... and so on
Structure description:
The pump is installed horizontally, the pump casing is horizontally separated from the axis line, the upper part is the pump cover, and the lower part is the pump body. It is necessary to remove the inlet and outlet pipes and the motor to open the pump cover, and take out the rotor parts for maintenance. The shaft seal adopts packing seal or mechanical seal (single-end unbalanced type).
The bearing chamber selects rolling bearing chamber or sliding bearing chamber according to different operating conditions, and rolling bearing chamber according to different operating conditions
Use grease or thin oil lubrication, and the sliding bearing chamber must be lubricated with thin oil.
SAP Pump Features:
1. The rotor is supported by both ends, running smoothly and with low noise.
2. The double suction impeller can balance the axial force by itself.
3. The shaft has a replaceable sleeve to protect the shaft and prolong the service life of the shaft.
4. The maintenance is convenient, the rotor can be taken out by disassembling the pump cover, and then hoisted to a safe and convenient place for maintenance.
5. During maintenance, there is no need to disassemble the inlet and outlet pipes.
6. There are two forms of packing seal and mechanical seal, which can be selected by the user.
7. The accumulated water in the pump can be completely drained, and it will not freeze and crack in extremely cold areas.
8. Rolling bearing is adopted, which has long running time and convenient maintenance.
