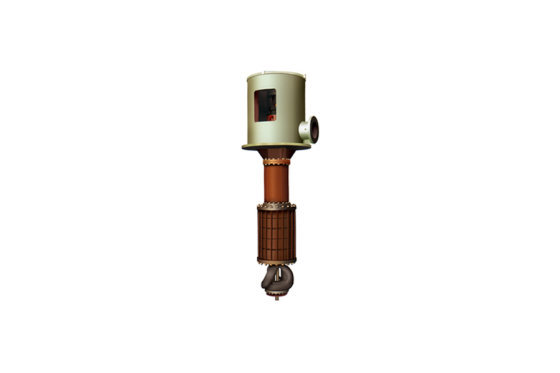

Swan Vertical Condensate Pump

Vertical multi-stage condensate pump is a series of products developed by Changsha Pump Factory by introducing the design and manufacturing technology of Hitachi, Japan.

Key words:

pump seal type condensate

category:

Vertical Condensate Pump

Pump consultation:

8615116488660

message

Related Products

Pump Description

Vertical multi-stage condensate pump is a series of products developed by Changsha Pump Factory by introducing the design and manufacturing technology of Hitachi, Japan. It is suitable for condensate pumps in large thermal power plants. Various specifications for 1000MW steam turbine generator set. It can also be used as a high-suction pump for pumping other liquids with physical and chemical properties similar to clean water, and the temperature of the liquid does not exceed 80 °C.

Parameter range:

Flow Q 230～1920m3/h Head H 74～303m

Model Description:

B640 (Ⅰ, Ⅱ, Ⅲ)-5 B——Double-suction spiral in the first stage (single suction after the second stage) guide vane centrifugal condensate pump 640——Nominal diameter of pump guide vane outlet mm I——Pump axial seal Adopt mechanical seal Ⅱ——The pump body bears the axial thrust Ⅲ——The pump body bears the axial thrust, the pump axial seal adopts the mechanical seal 5——The number of stages of the pump

structure type:

The condensate pump is a vertical outer cylinder and has three structural forms: (1) Type A - primary stage double suction guide vane type multistage centrifugal condensate pump, (2) B Type - primary stage double suction spiral guide vane type multistage centrifugal condensing pump Pump (3) Type C - The first-stage double-suction spiral oblique-flow multi-stage condensate pump pump unit is installed in direct connection; the axial force is borne by the motor, and can also be borne by the pump body. The axial seal of the pump is a packing seal, and a mechanical seal can also be used.

turn around:

From the motor to the pump, the pump rotates counterclockwise. Material of main parts: first stage outer cylinder Q235-A/stainless steel impeller stainless steel shaft 45 steel shell QT450-10

Complete range:

Complete supply of pumps and vertical motors. When ordering, please indicate the material of the main parts (parts). If there are special requirements, please negotiate with the manufacturer about the technical requirements.
